Anticon blanket insulation causing roof leaks

How anticon blanket insulation is installed under metal roofs can cause roof leaks

Most new metal roofs now have a layer of blanket insulation installed underneath. It is a nice handy way to insulate the roof cavity and also cut down on a bit of ‘rain noise’.

On most roofs, the blanket insulation does its job of insulating the roof and the metal roof sheeting keeps the rain out. On steep roofs, the termination point of the end of the blanket insulation is not critical. But as the roof gets flatter – a simple thing like leaving the blanket insulation too long, can generate a roof leak that will baffle most roofers…

One of the reasons that corrugated roofs are not suited for low pitch applications is the ‘dribble effect’.

The ‘dribble effect’ is the tendency for the rainwater to hang around the downstream edge of the roof sheet and dribble underneath. It can run backwards under the trough quite a bit – especially if there is wind involved.

The gutter on the roof has to be wide enough to catch the dribbles and prevent it from going into the roof cavity – and when this is the case, the roof does not leak.

The exception is when there is an anticon building blanket insulation involved.

I was taught to always to cut the blanket insulation well back from the back of the gutter. I thought it was just to save on materials – until I discovered the real reason why…

… If the water dribbling under the roof sheeting manages to meet the end of the building blanket – a funny thing happens. Capillary action sucks the water up into the blanket and soon the blanket insulation is soaking wet!

Then two things happen.

The wet insulation seeps water into the lap joint of the insulation blanket and drips over the edge into the ceiling cavity – causing a leak that will baffle most roofers.

AND also the wet blanket insulation starts to dry off under warm weather and ‘steams’ the underside of the roof sheet. Premature corrosion commences and the life span of the metal roof is drastically shortened… even the roofing screws rust away.

This is one of the dangers of using corrugated roofing on low pitched roofs.

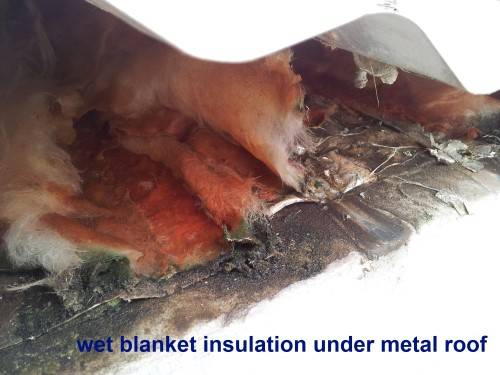

Recently, I was called out to a  roof in a Inner West suburb of St Peters, Sydney – because there as a leak that could not be tracked down. As the video below shows, it was a typical case of a flat metal corrugated roof with wet blanket insulation underneath

0 0 votes
Article Rating
Subscribe
Notify of
guest
10 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Advanced Insulation and Fabrications

Thank you for sharing your tips, they are very handy for people to know. Insulation can be a great addition to commercial and residential properties, but it does need to be installed correctly otherwise, as you have pointed out, it can lead to other damage which may not be immediately noticeable. It pays to do some research on what you are looking for and speak to as many professionals as you can.

Tim O'Loughlin
Tim O'Loughlin
7 years ago

Thanks for your advice on this. We are having extensions done now, and have a flat corrugated roof. We aim to install blanket insulation. Considering the problems that can occur, should we go ahead ? Or can it be installed in a way that leaks will never occur in a flat metal roof ?

Steve
Steve
5 years ago

Hi Jack

Thanks for the informative video. Now I know what is causing our leaks. In terms of correcting the problem, can I just push the roof blanket back so it is farther from the edge of the roof?

Cheers
Steve

Vatche
4 years ago

Hi Jack,

Thanks for the important info.
I’m building my own studio shed. I have roof frame, then 12mm plywood, then covered with sarking.
1) Do I need wooden rails running along to screw my roof on, or can I just screw to the roof frame through the plywood?
2) Do I need the layer of the blanket under the metal roof, if I already have 140mm thick insulation under the 12mm plywood, from the inside?
Your advice is much appreciated.

My video on the project for more details: https://www.youtube.com/watch?v=pid8GvaHdFE

P.S. Can you quote me to install my roof if I think it is beyond my capacity?
Thanks.

Darren Ma
3 years ago

Hi Jack,
you seem like the man to ask. I have had a colorbond roof installed with 50mm blanket insulation underneath. The installers have not carried the insulation on to the bottom most baton and this causes the insulation to be draped into the eve. I was expecting the insulation to cover the entire sheet, secured under the bottom most baton and then trimmed short of the gutter say 100mm. Am I right, should I have them back to rectify. They say the draping of the insulation into the eve gives better insulation with this method. Looks sub standard to me.
thanks in advance

Steve Barbara
Steve Barbara
2 years ago

thanks for the informative video – well presented. I am just having my metal roof quoted and will be sure to ask the contractors about this issue to avoid problems.
